OCV for No. 4 cylinder deactivation

WARNING: This page is about a different variant/trim than selected.

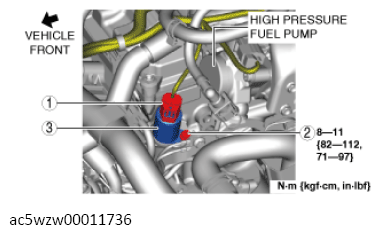

Fig 1: Oil Control Valve For No. 4 Cylinder Deactivation Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART SPECIFICATION

1	Connector
2	Bolt (See Bolt Installation Note ).
3	OCV for No. 4 cylinder deactivation (See OCV For Cylinder Deactivation Installation Note ).
