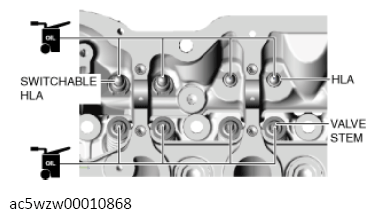

Rocker Arm Installation Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Verify that the rocker arm is securely assembled to the HLA and the valve system.
- Apply engine oil to the HLAs, switchable HLAs and the end of the valve stems.
 Courtesy of MAZDA MOTORS CORP.
|
- Install the rocker arms to the same positions as before removal.
