Front Oil Seal Replacement: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

1.: Mazda SST number 2.: Global SST number
1: 49 B011 105 2:- Adapter	Courtesy of MAZDA MOTORS CORP.	1: 49 UN20 5072 2: 205-072 Holder	Courtesy of MAZDA MOTORS CORP.	1: 49 G028 205 2:- Oil seal installer	Courtesy of MAZDA MOTORS CORP.

Replacement Part

Front oil seal

Quantity: 1

Location of use: Engine front cover

Oil and Chemical Type

Engine oil

Type: Recommended oil

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION ).
Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.
Install in the reverse order of removal.

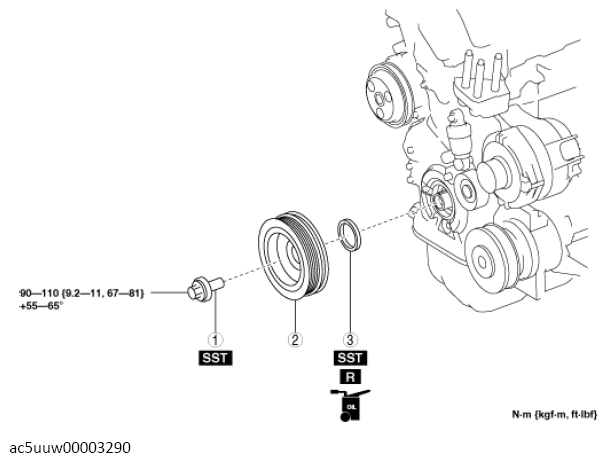

Fig 1: Front Oil Seal Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.

PART SPECIFICATION

1	Crankshaft pulley lock bolt (See Crankshaft Pulley Lock Bolt Removal Note ). (See Crankshaft Pulley Lock Bolt Installation Note ).
2	Crankshaft pulley
3	Front oil seal (See Front Oil Seal Removal Note ). (See Front Oil Seal Installation Note ).
