No. 1 Engine Mount (AWD): Notes

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When removing the No. 1 engine mount bracket B for (AWD) vehicles, perform the procedure with the transfer completely removed from the transaxle.
  1. Remove the front undercover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

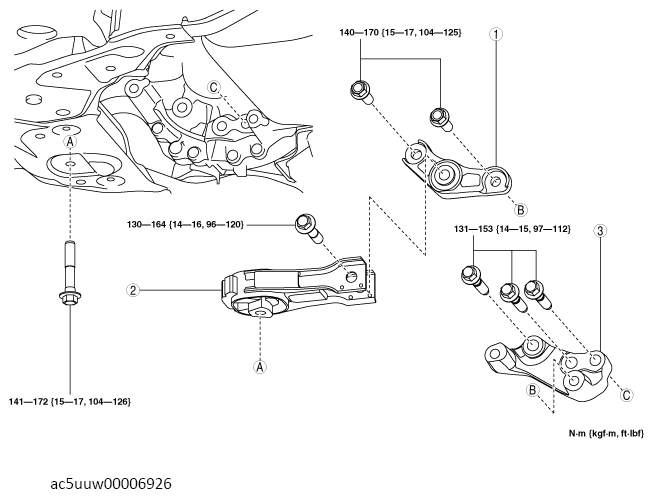

    Fig 1: No. 1 Engine Mount Components With Torque Specification (AWD)
    G13671978Courtesy of MAZDA MOTORS CORP.
PART SPECIFICATION

1 No. 1 engine mount bracket A
(See No. 1 engine mount removal note (AWD) ).
(See No. 1 engine mount installation note (AWD) ).
2 No. 1 engine mount rubber
(See No. 1 engine mount removal note (AWD) ).
(See No. 1 engine mount installation note (AWD) ).
3 No. 1 engine mount bracket B
(See No. 1 engine mount removal note (AWD) ).
(See No. 1 engine mount installation note (AWD) ).
