Drive Belt Auto TENSIONER Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
CAUTION:
  • If the rubber part of the drive belt auto tensioner is damaged by a screwdriver or other tool, oil in the hydraulic pressure unit could leak and the tensioner may not operate normally. Be careful not to damage the rubber part of the drive belt auto tensioner.
G14464581Courtesy of MAZDA MOTORS CORP.
  1. Remove the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

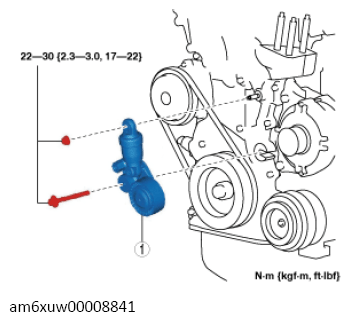

    Fig 1: Drive Belt Auto Tensioner Components With Torque Specification
    G13671904Courtesy of MAZDA MOTORS CORP.
    PART SPECIFICATION

    1 Drive belt auto tensioner
    (See Drive Belt Auto Tensioner Installation Note ).
