Water Inlet Pipe and Flange Installation Note

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Be aware of the following points, otherwise engine coolant leakage could result.
- Do not allow oil (such as engine oil, ATF) to contact O-ring
- Do not damage O-rings

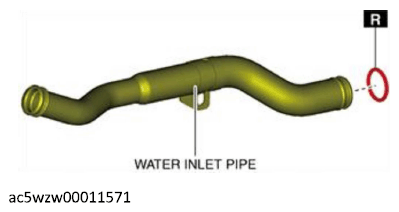

Apply engine coolant to a new O-ring (water pump side).
Install the O-ring to the water inlet pipe.

Courtesy of MAZDA MOTORS CORP.
Insert the water inlet pipe into the water pump so that the marked position is aligned with the projection position.

Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

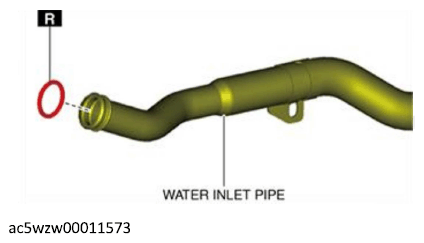

Apply engine coolant to a new O-ring (flange side).
Install the O-ring to the water inlet pipe.

Courtesy of MAZDA MOTORS CORP.

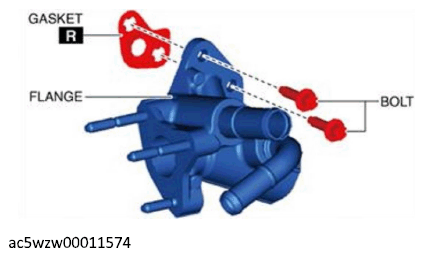

Assemble the flange, gasket and bolts.

Courtesy of MAZDA MOTORS CORP.
Assemble the water inlet pipe and the flange so that the marked position is aligned with the projection position.

Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

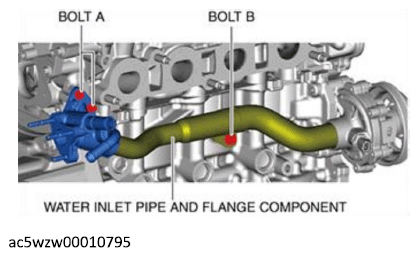

Tighten the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

Bolt A: 12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}

Bolt B: 20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
