Rocker Arm Installation Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Verify that the rocker arm is securely assembled to the HLA and the valve system.

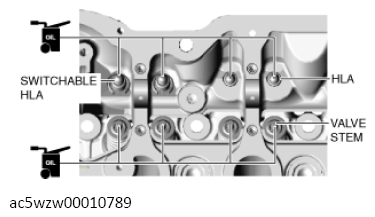

  1. Apply engine oil to the HLAs, switchable HLAs and the end of the valve stems.
    G13730060Courtesy of MAZDA MOTORS CORP.
  2. Install the rocker arms to the same positions as before removal.
