Section 6 (On-Board Diagnostic - Engine Control System (VIN M) (5 Of 7))
>>
DTC P2251-00: Open Circuit Between A/F Sensor Terminal D And Pcm Terminal 1S
>>

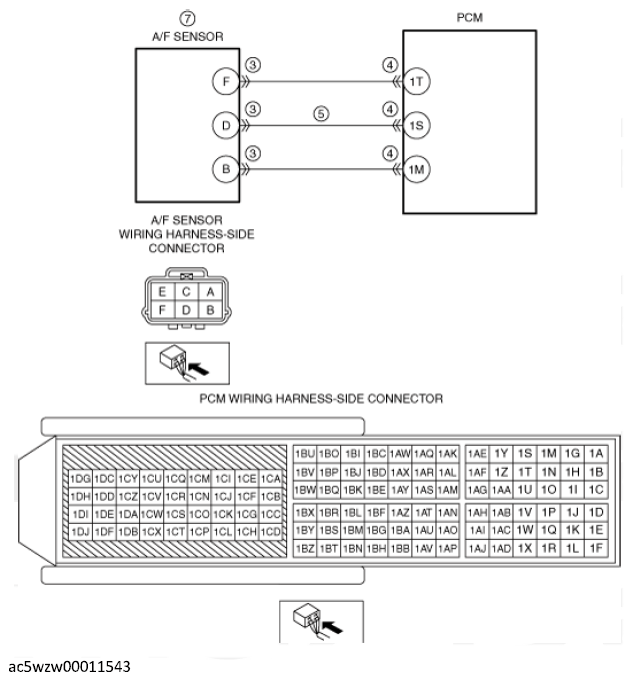

System Wiring Diagram
System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
