Fuel pump control module (diagnostic) signal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of MAZDA MOTORS CORP.
|
PCM terminals
- 2AX(+)-body ground(-)

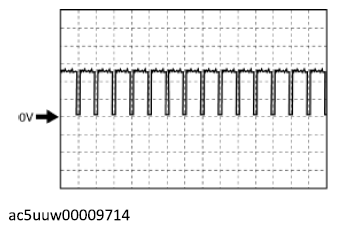

Oscilloscope setting
- 2 V/DIV (Y), 50 ms/DIV (X), DC range
Vehicle condition
- Idle after warm up
