Resistance inspection: Specification

WARNING: This page is about a different variant/trim than selected.

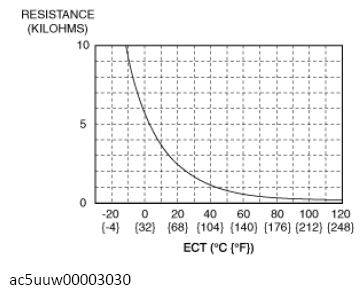

ECT (°C {°F}) Resistance (Kilohms)
20 {68} Approx. 2.45
80 {176} Approx. 0.318
G13111277Courtesy of MAZDA MOTORS CORP.
