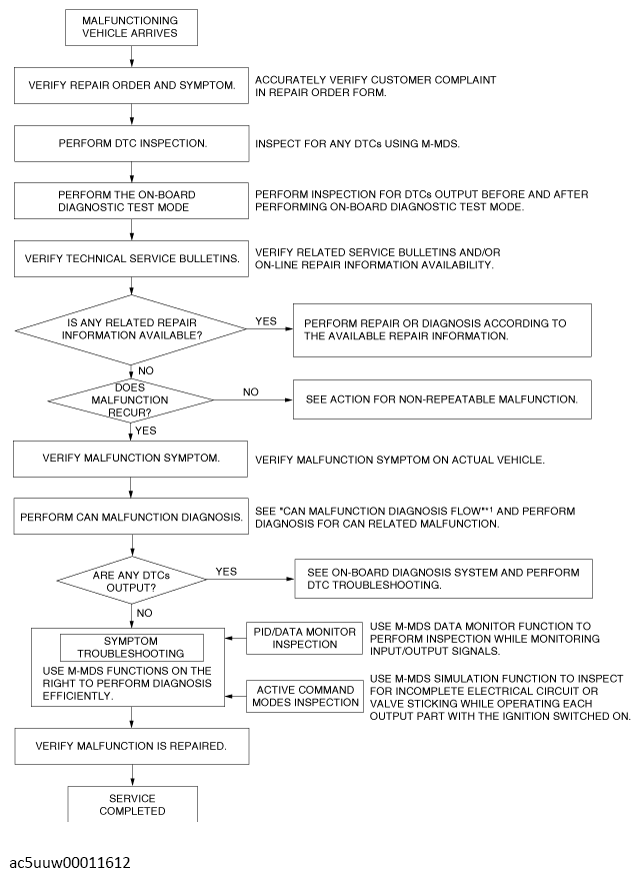

Troubleshooting Procedure

WARNING: This page is about a different variant/trim than selected.

G14466712

Courtesy of MAZDA MOTORS CORP.

*1 :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-A (SKYACTIV-G 2.5)] .) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-B] ).
