Converter Housing Side (FW6AX-EL)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
  2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  3. Remove the transfer. (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] ).

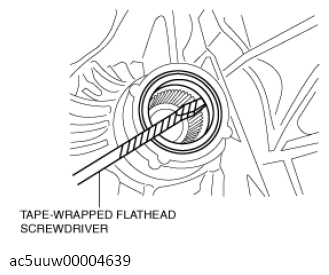

  4. Remove the oil seal using a tape-wrapped flathead screwdriver.
    G13715996Courtesy of MAZDA MOTORS CORP.
  5. Using the SSTs and a hammer, install a new oil seal.
    G11429194Courtesy of MAZDA MOTORS CORP.
  6. Coat the lip of the oil seal with ATF.
  7. Install the transfer. (See TRANSFER REMOVAL/INSTALLATION [FW6AX-EL] ).
  8. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
  9. Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
  10. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST ).
