Oil Cooler: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN M] ).
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [VIN M] ).
Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT ).
Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST ).

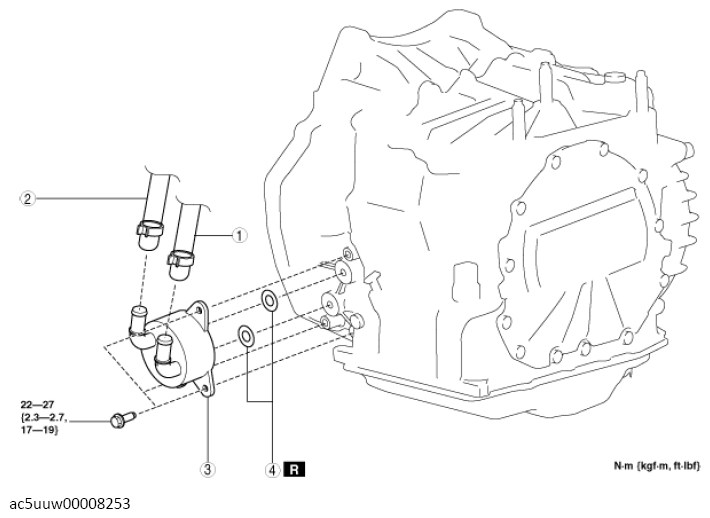

Fig 1: Oil Cooler Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Water hose No. 1 (See Water hose No. 1 and No. 2 (oil cooler side) installation note ).
2	Water hose No. 2 (See Water hose No. 1 and No. 2 (oil cooler side) installation note ).
3	Water-cooled oil cooler
4	O-rings
