Section 2 (On-Board Diagnostic - Engine Control System (VIN M) - Introduction (1 Of 2)): Foreword

WARNING: This page is about a different variant/trim than selected.

If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

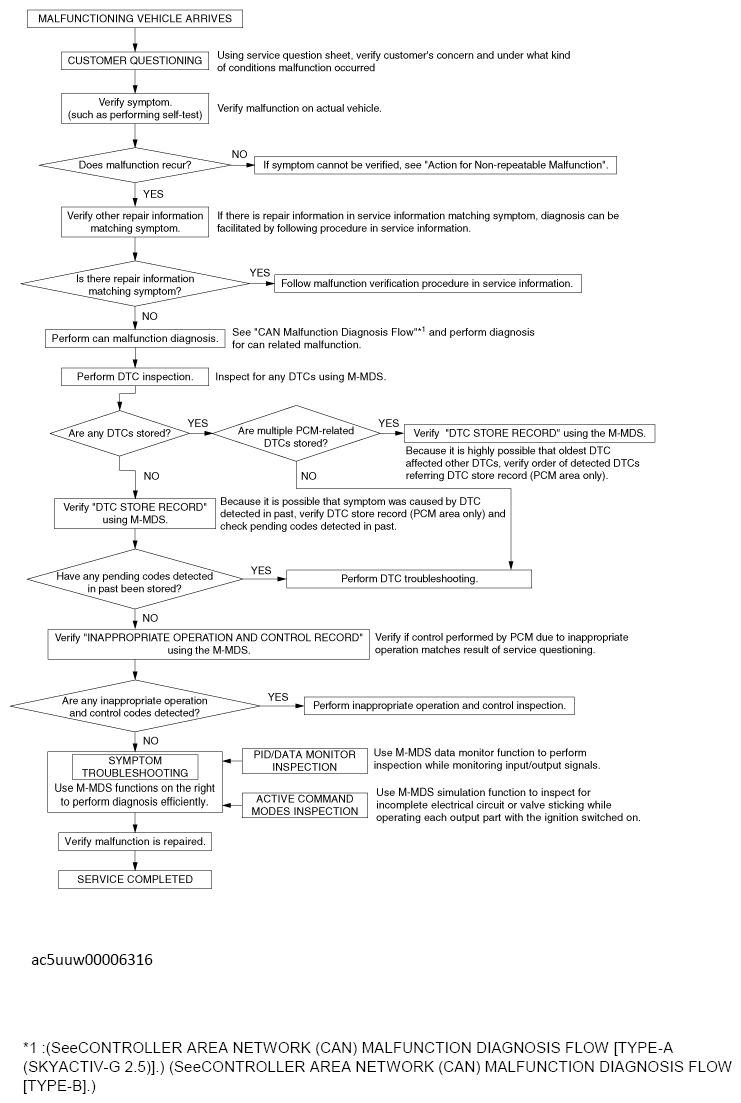

Troubleshooting Procedure

Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-A (VIN M)] .) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-B] ).

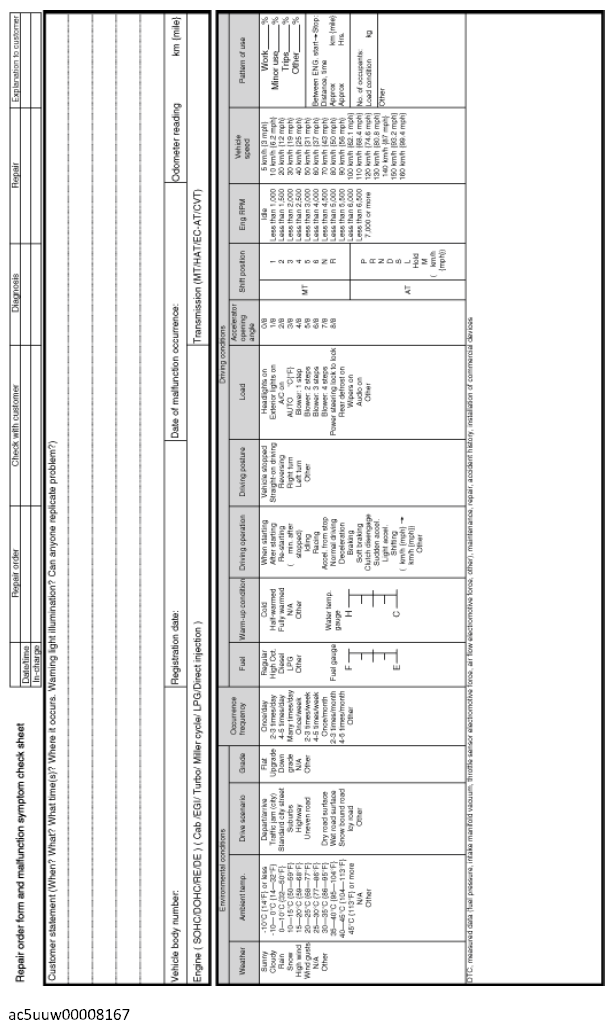

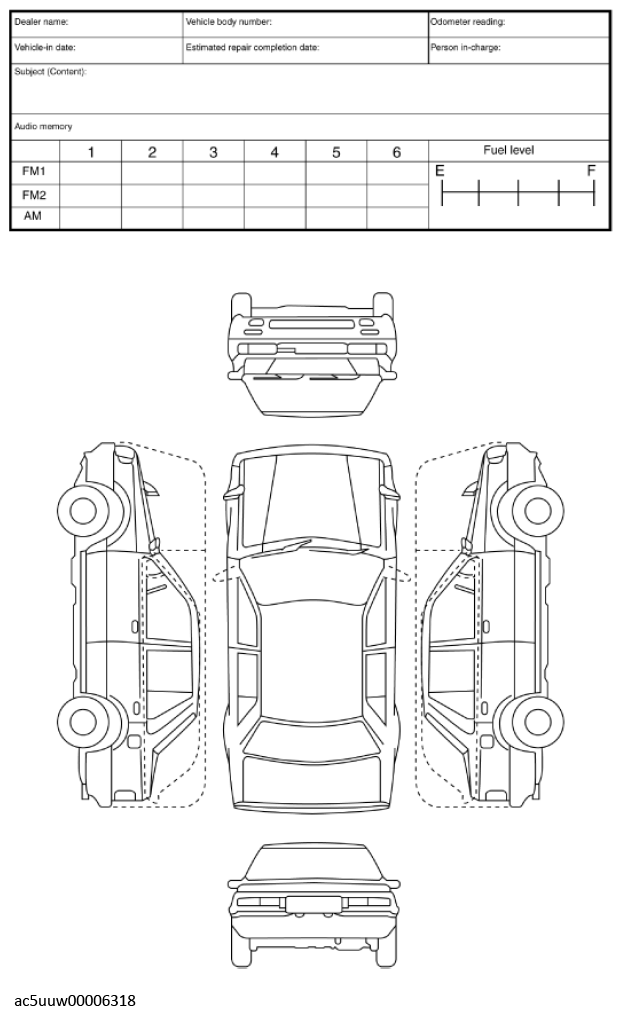

Repair Order Form

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

Action for Non-repeatable Malfunction

If the malfunction does not recur, verify the malfunction cause by performing the following actions:

Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

Courtesy of MAZDA MOTORS CORP.

Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM ).

NOTE:

Tool used (Reference): terminal test kit (49US-15-KIT)

Courtesy of MAZDA MOTORS CORP.
