Section 19 (On-Board Diagnostic - Engine Control System (VIN M) (6 Of 7))
>>
DTC P2B60-00: Coolant Control Valve Position Sensor Circuit Range/Performance
>>

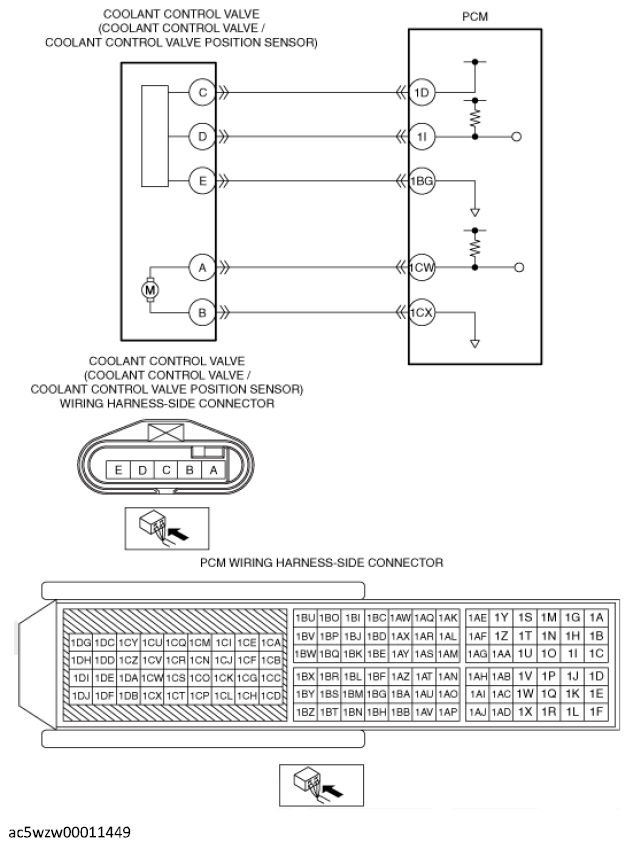

System Wiring Diagram
System Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
