Exhaust system insulator removal/installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

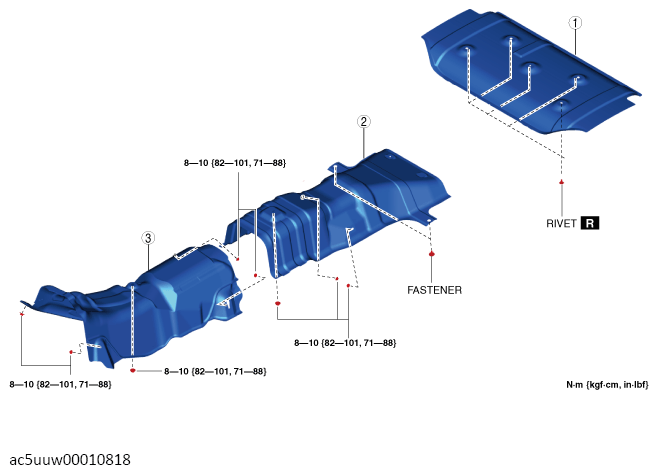

Fig 1: Exhaust System Insulator Components With Torque Specification (2WD)
G13672632Courtesy of MAZDA MOTORS CORP.
PART SPECIFICATION

1 Insulator (rear)
(See Insulator (rear) removal note ).
2 Insulator (middle)
3 Insulator (front)
