Exhaust manifold insulator installation note

WARNING: This page is about a different variant/trim than selected.

Temporarily tighten the exhaust manifold insulator.

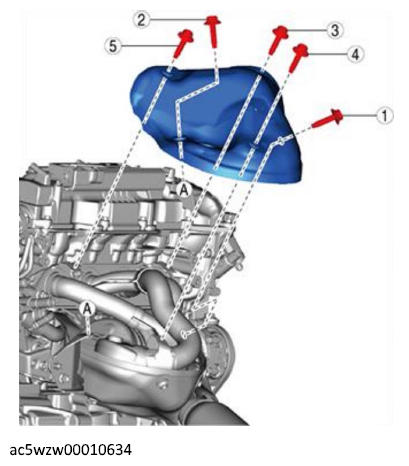

Tighten the exhaust manifold insulator in the order shown in the figure.

Fig 1: Exhaust Manifold Insulator Bolts Tightening Sequence (2WD)
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}

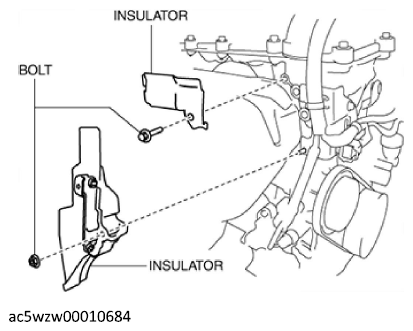

Install the insulators shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the purge solenoid valve component.

Courtesy of MAZDA MOTORS CORP.
Install the wiring harness clip shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install the bolts shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
Install the No. 1 engine mount rubber bolt (transmission side), and the No. 1 engine mount rubber bolt (front crossmember side). (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY ).
