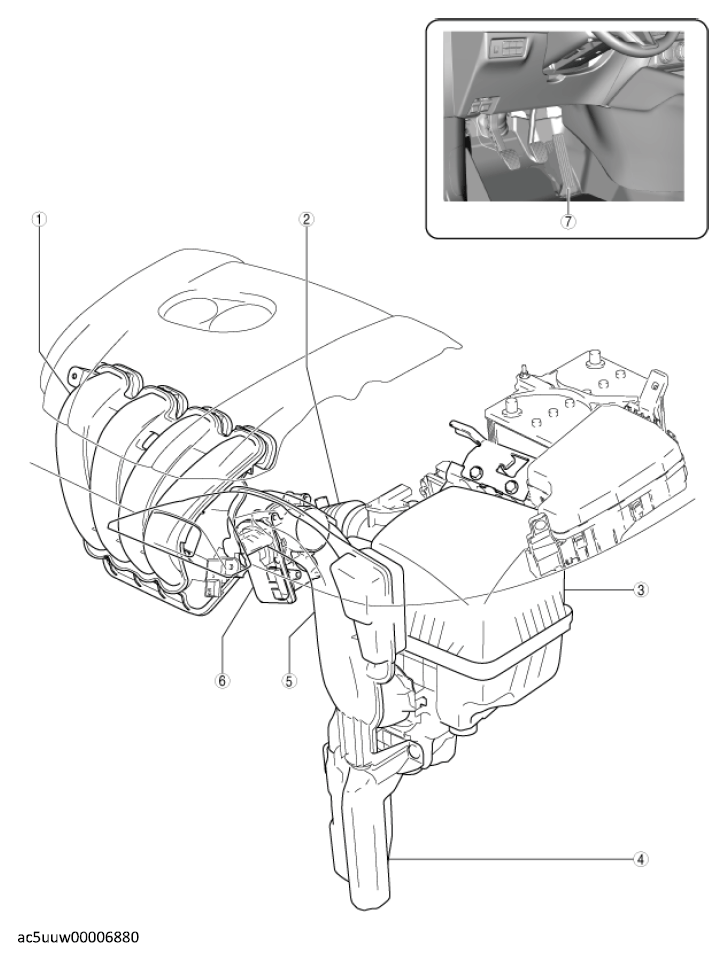

Intake-Air System Location Index
WARNING: This page is about a different variant/trim than selected.
PART DESCRIPTION
| 1 | Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ). (See INTAKE MANIFOLD VACUUM INSPECTION ). |
| 2 | Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ). |
| 3 | Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ). (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION ). (See AIR CLEANER ELEMENT INSPECTION ). |
| 4 | Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ). |
| 5 | Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ). |
| 6 | Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ). (See THROTTLE BODY INSPECTION ). |
| 7 | Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION ). |
