Water Pump Component Removal Note
WARNING: This page is about a different variant/trim than selected.
- Place a container under the engine to collect the engine coolant remaining in the engine.

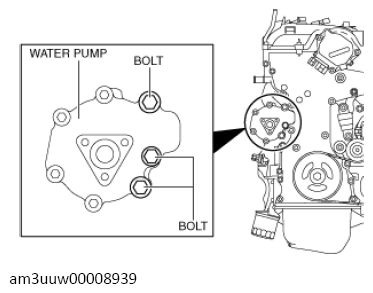

- Slightly loosen the three water pump component bolts shown in the figure and collect the draining engine coolant into a container.CAUTION:
- Do not remove the water pump component completely at this time because the engine coolant remaining in the engine will drain out.
- After the engine coolant stops draining, remove the water pump component.
