Water Pump Component Installation Note

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Assemble the water pump gasket to the correct direction shown in the figure. Otherwise, it could leak engine coolant and damage the engine.

Courtesy of MAZDA MOTORS CORP.

Do not apply oil (such as engine oil, ATF) to the water pump gasket. Otherwise, the gasket could swell causing a seal malfunction.

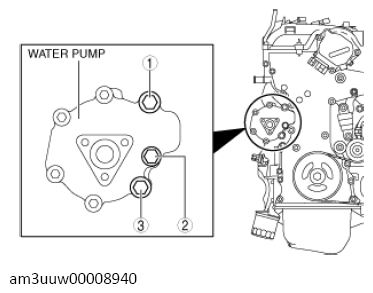

Fig 1: Water Pump Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

Tightening torque

20-26 N.m {2.1-2.6 kgf.m, 15-19 ft.lbf}
