Radiator Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
  2. Lift the radiator and remove it from the radiator installation holes on the shroud panel.
  3. Move the radiator and condenser to the engine side.
  4. Remove the two bolts (lower side) which secure the condenser to the radiator.

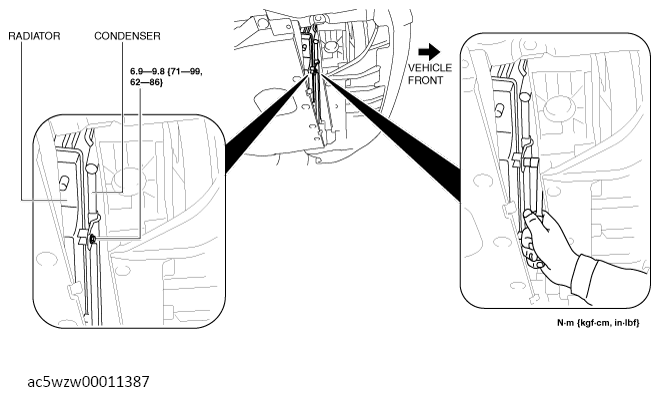

    Fig 1: Radiator, Condenser Bolts With Torque Specification
    G14465322Courtesy of MAZDA MOTORS CORP.
  5. Remove the two bolts (upper side) which secure the condenser to the radiator.

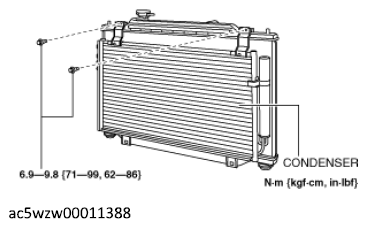

    Fig 2: Radiator, Condenser Bolts With Torque Specification
    G12184221Courtesy of MAZDA MOTORS CORP.
  6. Remove the radiator from above the engine compartment.

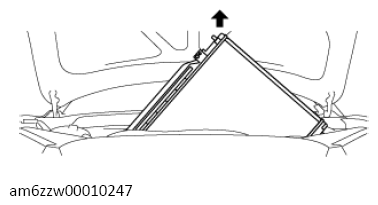

G13672317Courtesy of MAZDA MOTORS CORP.
