Upper Radiator Hose Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bracket shown in the figure from the throttle body and set the upper radiator hose aside.

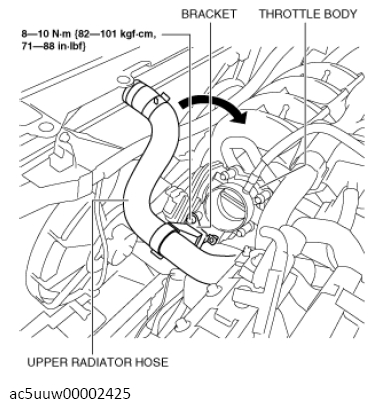

Fig 1: Bracket, Throttle Body, Upper Radiator Hose And Bolt With Torque Specification
G13108177Courtesy of MAZDA MOTORS CORP.
