Cooling Fan Component Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the connectors from the cooling fan motors.
  2. Remove the wiring harness clips shown in the figure.
    G11429366Courtesy of MAZDA MOTORS CORP.

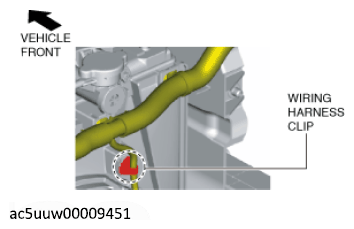

    G12184205Courtesy of MAZDA MOTORS CORP.
  3. Remove the cooling fan component from above the engine compartment.

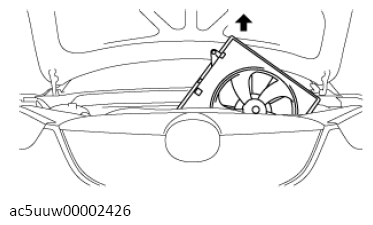

G13108180Courtesy of MAZDA MOTORS CORP.
