Upper Radiator Hose Installation Note
WARNING: This page is about a different variant/trim than selected.
- Install the upper radiator hose using the following procedure:

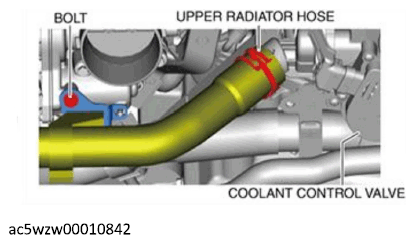

- Tighten the bolt shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
- Connect the upper radiator hose to the coolant control valve so that the projection position is aligned with the mark.
 Courtesy of MAZDA MOTORS CORP.
|
