DTC P0328-00: KS Circuit High Input: Notes
WARNING: This page is about a different variant/trim than selected.
DTC P0328-00: (PCM, VIN M) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0328-00: |
KS circuit high input |
| DETECTION CONDITION |
- The PCM monitors input signal from the KS. If the input voltage is high for 5 s, the PCM determines that the KS circuit has a malfunction. Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA/Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
- Sets the knocking spark retard correction value of the ignition control to the fixed value.
|

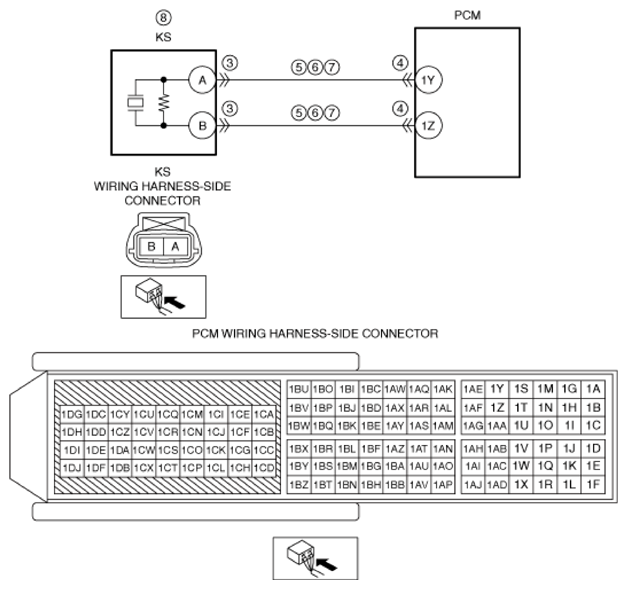

| POSSIBLE CAUSE |
- KS connector or terminals malfunction
- PCM connector or terminals malfunction
- Short to power supply in wiring harness between the following terminals:
- KS terminal A-PCM terminal 1Y
- KS terminal B-PCM terminal 1Z
- KS circuits are shorted to each other
- Open circuit in wiring harness between the following terminals:
- KS terminal A-PCM terminal 1Y
- KS terminal B-PCM terminal 1Z
- KS malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
