DTC P0202-00: Fuel Injector Circuit/Open Cylinder No. 2: Notes

WARNING: This page is about a different variant/trim than selected.

DTC P0202-00: (PCM, VIN M) DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0202-00:	Fuel injector circuit/open cylinder No. 2
DETECTION CONDITION	If the fuel injection verification signal is not input at 25 times continuously even though the PCM drives the fuel injector No. 2, the PCM determines that there is an open circuit in the fuel injector No. 2 control circuit. MONITORING CONDITIONS The following conditions are met: Battery voltage: 10.5 V or more Fuel injection control: except during fuel cut Diagnostic support note This is a continuous monitor (CCM). The check engine light illuminates if the PCM detects the above malfunction condition during the first drive cycle. FREEZE FRAME DATA/Snapshot data is available. DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	Not applicable

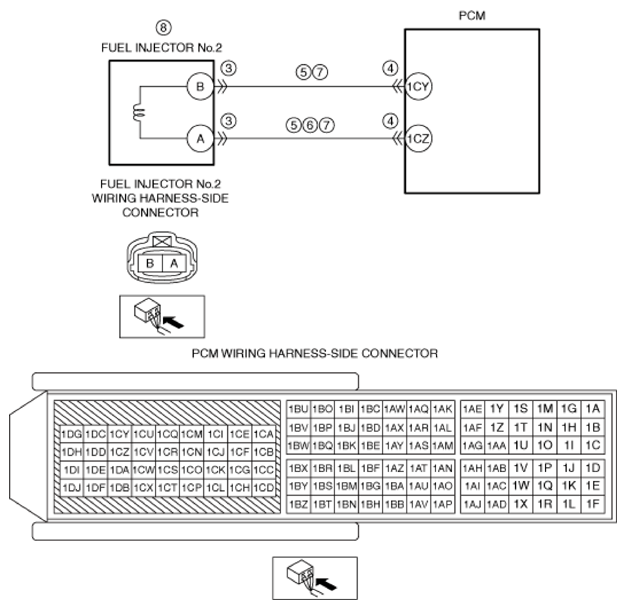

POSSIBLE CAUSE	Fuel injector No. 2 connector or terminals malfunction PCM connector or terminals malfunction Short to ground in wiring harness between the following terminals: Fuel injector No. 2 terminal B-PCM terminal 1CY Fuel injector No. 2 terminal A-PCM terminal 1CZ Short to power supply in wiring harness between fuel injector No. 2 terminal A and PCM terminal 1CZ Open circuit in wiring harness between the following terminals: Fuel injector No. 2 terminal B-PCM terminal 1CY Fuel injector No. 2 terminal A-PCM terminal 1CZ Fuel injector No. 2 malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
