No. 1 Blown Fuses

WARNING: This page is about a different variant/trim than selected.

1	BLOWN FUSES
[TROUBLESHOOTING HINTS]

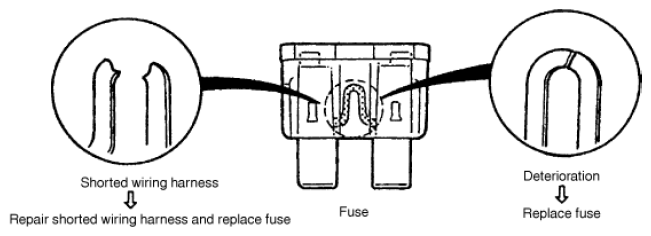

Inspect condition of fuse.
Courtesy of MAZDA MOTORS CORP.

Damaged fuse	Related wiring harness
MAIN	FAN GE fuse ADD FAN GE fuse FUEL PUMP fuse IG2 fuse ENG.+B fuse ENG.MAIN fuse EVVT fuse IG1 relay ENG.SUB fuse
FAN GE	Cooling fan relay No. 2
ADD FAN GE	Cooling fan relay No. 3
ENGINE.IG1	Fuel pump relay PCM
FUEL PUMP	Fuel pump relay
STR	Generator Starter
IG2	ACC relay Starter relay
ENG.+B	PCM DLC-2
ENG.MAIN	Main relay
ENG.SUB	Sub relay
EVVT	Electric variable valve timing relay
ENGINE2	Electric variable valve timing relay HO2S A/F sensor Intake CMP sensor Exhaust CMP sensor Ignition coil/ion sensor No. 1 Ignition coil/ion sensor No. 2 Ignition coil/ion sensor No. 3 Ignition coil/ion sensor No. 4
ENGINE3	Active air shutter Cooling fan relay No. 1 Cooling fan relay No. 2 Cooling fan relay No. 3 Forward sensing camera (FSC)
ENGINE4	Purge solenoid valve Sub relay OCV for hydraulic variable valve timing system Engine oil solenoid valve CV solenoid valve
