Purge Solenoid Valve Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

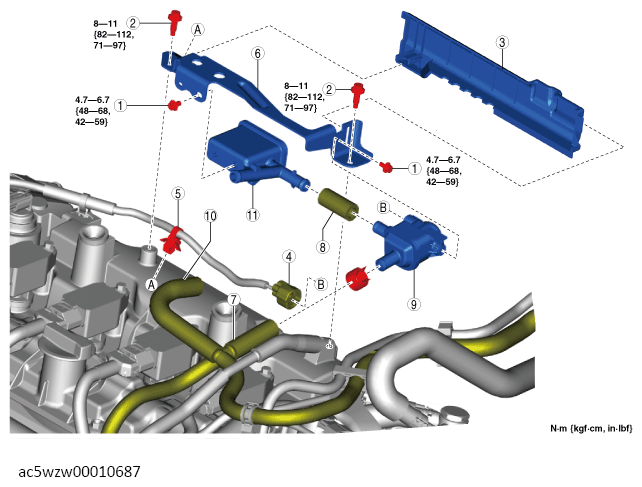

PART DESCRIPTION
| 1 | Bolt |
| 2 | Bolt |
| 3 | Insulator (See Insulator Installation Note ). |
| 4 | Purge solenoid valve connector |
| 5 | Wiring harness clip |
| 6 | Bracket |
| 7 | Evaporative hose No. 1 (See Evaporative Hose No. 1 Installation Note ). |
| 8 | Evaporative hose No. 2 (See Evaporative Hose No. 2 Installation Note ). |
| 9 | Purge solenoid valve |
| 10 | Evaporative hose No. 3 (See Evaporative Hose No. 3 Installation Note ). |
| 11 | Catch tank |
