Engine Compartment Side

WARNING: This page is about a different variant/trim than selected.

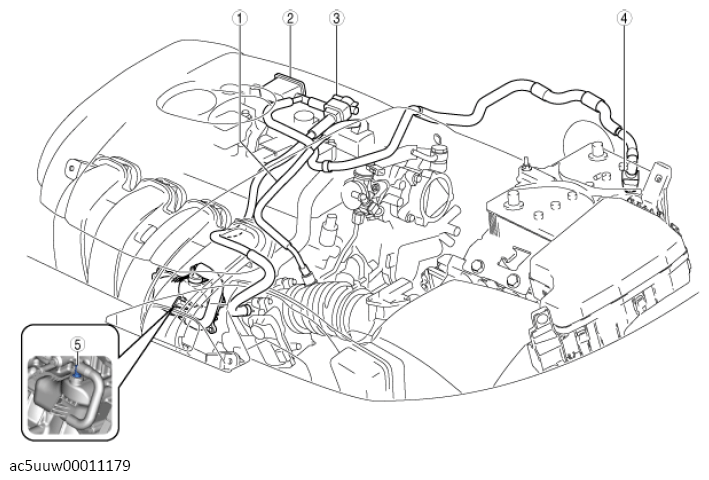

G13672760Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Ventilation hose
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
2 Catch tank
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION ).
(See CATCH TANK INSPECTION ).
3 Purge solenoid valve
(See PURGE SOLENOID VALVE REMOVAL/INSTALLATION ).
(See PURGE SOLENOID VALVE INSPECTION ).
4 Quick release connector
(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION ).
5 PCV valve
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION ).
(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION ).
