Section 12 (Emission System (VIN M))
>>

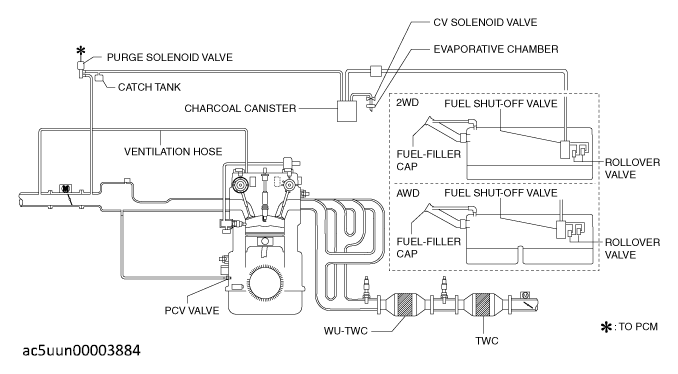

Emission System Diagram
Emission System Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
