Section 11 (Fuel System (VIN M))
>>
Fuel-Filler Pipe Removal/Installation
>>
Joint Hose Installation Note
Joint Hose Installation Note
WARNING:
This page is about a different variant/trim than selected.

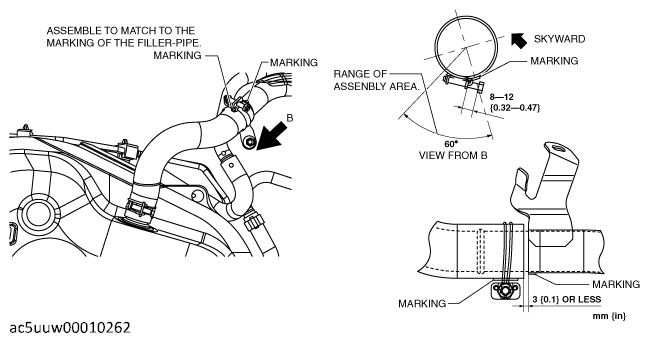

Install the joint hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
