Engine Oil Solenoid Valve Installation Note
WARNING: This page is about a different variant/trim than selected.

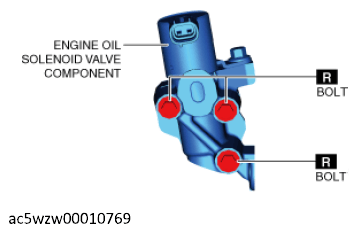

- After tightening the three bolts shown in the figure, tighten the first tightened bolt to the specified tightening torque again.
 Courtesy of MAZDA MOTORS CORP.
|
NOTE:
- The tightening order for the three bolts is optional.
Tightening torque
12-16 N.m {123-163 kgf.cm, 107-141 in.lbf}
