DTC P0629-00: Fuel Pump Control Module Circuit High Input: Notes
WARNING: This page is about a different variant/trim than selected.
DTC P0629-00: (PCM, VIN Y) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0629-00: |
Fuel pump control module circuit high input |
| DETECTION CONDITION |
- The PCM detects over-current during the fuel pump control module control.
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Fuel pump unit connector or terminals malfunction
- Fuel pump unit malfunction
- Fuel pump control module connector or terminals malfunction

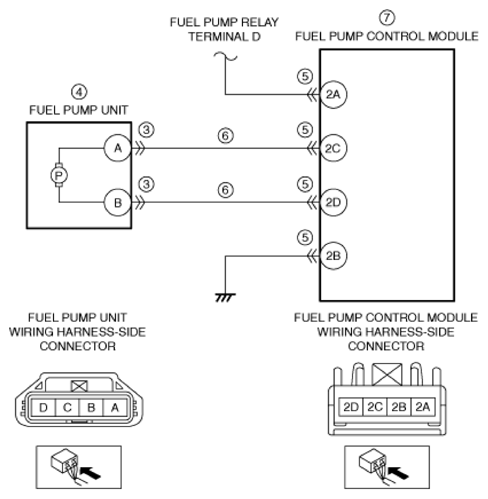

- Short to power supply in wiring harness between the following terminals:
- Fuel pump unit terminal A-Fuel pump control module terminal 2C
- Fuel pump unit terminal B-Fuel pump control module terminal 2D
- Fuel pump control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
