No. 3 Engine Mount, No. 4 Engine Mount Bracket Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip and bolt shown in the figure and set the ground cable aside.
    G13107166Courtesy of MAZDA MOTORS CORP.
  2. Set the PCM wiring harness and PCM component aside using the following procedure:
    1. Disconnect the PCM connector (140 pin side) from the PCM. (See PCM REMOVAL/INSTALLATION ).
    2. Remove the bolt, clip and connector shown in the figure and set aside the PCM wiring harness to the engine upper side.
      G13107167Courtesy of MAZDA MOTORS CORP.
    3. Remove the bolts shown in the figure.
      G13107168Courtesy of MAZDA MOTORS CORP.
    4. Move the PCM component in the direction of the arrow shown in the figure and set it aside with the connector (60-pin side) connected.
      G13107169Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the clip shown in the figure.
    G11436690Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When supporting the engine and transaxle, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan, transaxle to prevent the deformation of the oil pan and damage of the transaxle.
  4. Remove the bolts and nut shown in the figure and set the cooler hose aside.
    G13107171Courtesy of MAZDA MOTORS CORP.

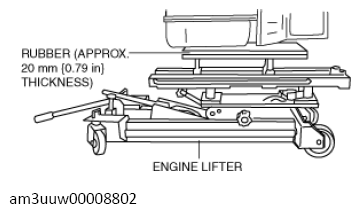

  5. Secure the engine and transaxle using a commercially available engine lifter.
    G13720644Courtesy of MAZDA MOTORS CORP.
  6. Remove the No. 4 engine mount bracket. 7. Remove the No. 3 engine mount.
