No. 4 engine mount rubber installation note
WARNING: This page is about a different variant/trim than selected.

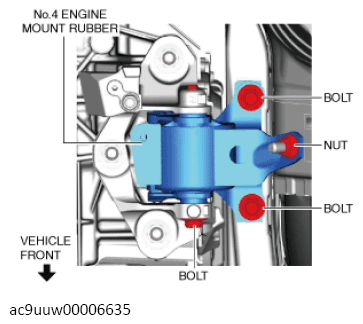

- Install the No. 4 engine mount rubber and temporarily tighten the bolts and nut shown in the figure.
- Tighten the No. 4 engine mount rubber installation bolts and nut in the order shown in the figure.
Tightening torque
TIGHTENING TORQUE SPECIFICATIONNo. Tightening torque 1, 2 131-153 N.m {14-15 kgf.m, 97-112 ft.lbf} 3 54-62 N.m {5.6-6.3 kgf.m, 40-45 ft.lbf} 4 81-99 N.m {8.3-10 kgf.m, 60-73 ft.lbf} - Remove the engine lifter or garage jack.
- Install the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).
- Install the front wiring harness protector No. 2. (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION
).
- Tighten the battery tray bracket installation bolts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
22-30 N.m {2.3-3.0 kgf.m, 17-22 ft.lbf}
