Generator Drive Belt

WARNING: This page is about a different variant/trim than selected.

NOTE:

The generator drive belt deflection/tension inspection is not necessary with the adoption of the drive belt auto tensioner.
The generator drive belt does not have to be replaced because fraying of the generator drive belt does not affect the performance.

Courtesy of MAZDA MOTORS CORP.

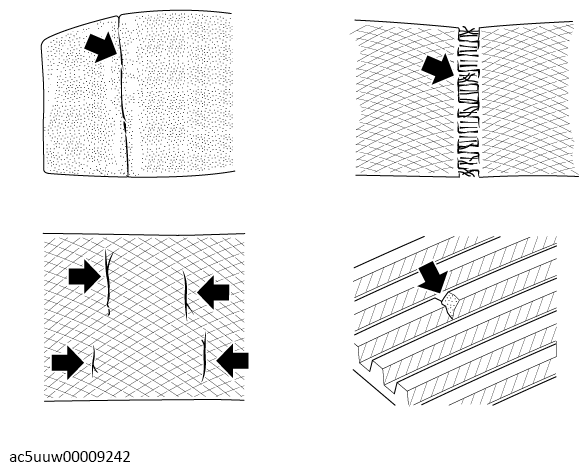

Visually inspect or feel that there is no wear, damage, or cracking on the inside and sides of the entire belt.

Courtesy of MAZDA MOTORS CORP.
- Even if there is a little wear, damage, or cracking, replace the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION ).
Verify that the indicator part of the cast hexagon on the drive belt auto tensioner is within the normal range.
- If it exceeds the limit, replace the generator drive belt. (See DRIVE BELT REMOVAL/INSTALLATION ).
Courtesy of MAZDA MOTORS CORP.
