Water Pipe Component Removal Note

WARNING: This page is about a different variant/trim than selected.

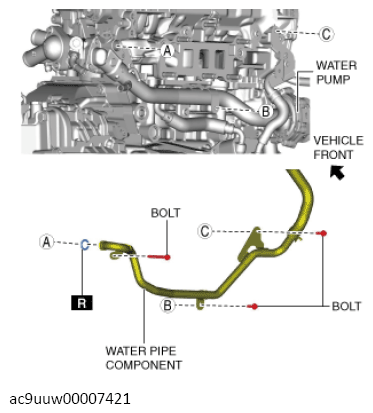

  1. Remove the bolts shown in the figure and set the water pipe component aside.
    G13720498Courtesy of MAZDA MOTORS CORP.
