Drive Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

49 E011 1A0
Ring gear brake set

Courtesy of MAZDA MOTORS CORP.

Replacement Part

Bolt

Quantity: 8

Location of use: Drive plate

Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .) .

Remove in the order indicated in the table.

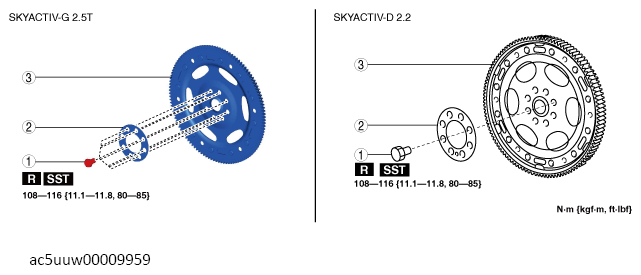

Fig 1: Drive Plate Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Drive plate installation bolts (See Drive Plate Installation Bolts Removal Note ). (See Drive Plate Installation Bolts Installation Note ).
2	Backing plate
3	Drive plate
