Insulator (middle) installation note (AWD)
WARNING: This page is about a different variant/trim than selected.

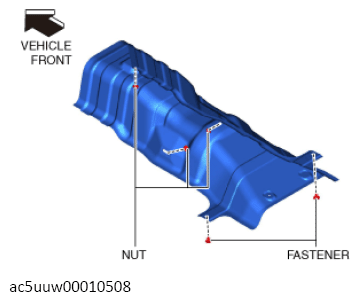

- Install the fasteners shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Tighten the nuts shown in the figure to the specified torque.
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
