Insulator (front) installation note (AWD)
WARNING: This page is about a different variant/trim than selected.

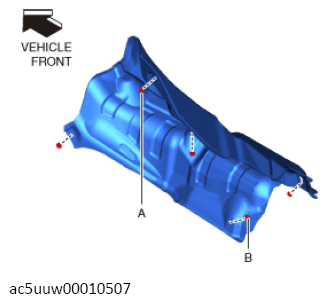

- Tighten nut A shown in the figure to the specified torque.
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
- Tighten nut B shown in the figure to the specified torque.
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
- Tighten the remaining nuts to the specified torque.
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
