WU-TWC insulator No. 1 installation note (2WD)
WARNING: This page is about a different variant/trim than selected.
- Temporarily tighten the WU-TWC insulator No. 1 installation bolts.
Courtesy of MAZDA MOTORS CORP.

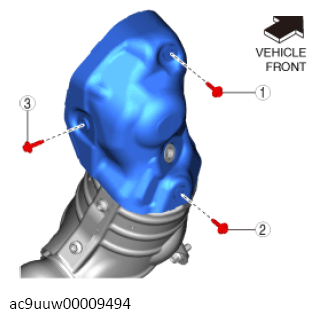

- Tighten the bolts in the order shown in the figure
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
