DTC P025C-00: Fuel Pump Control Module Result Of On-Board Diagnostic Test Low Input: Notes
WARNING: This page is about a different variant/trim than selected.
DTC P025C-00: (PCM, VIN Y) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P025C-00: |
Fuel pump control module result of on-board diagnostic test low input |
| DETECTION CONDITION |
- Result of on-board test cannot be received from fuel pump control module (voltage is too low).
Diagnostic support note
- This is a continuous monitor (CCM).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |
- Fuel pump control module connector or terminals malfunction
- PCM connector or terminals malfunction

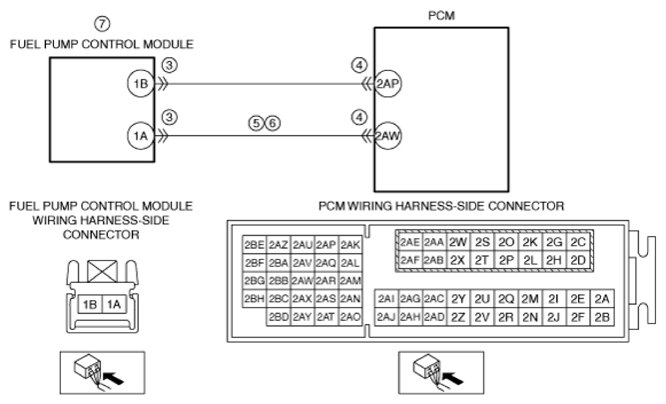

- Short to ground in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AW
- Open circuit in wiring harness between fuel pump control module terminal 1A and PCM terminal 2AW
- Fuel pump control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
