Coolant Reserve Tank Removal Note

WARNING: This page is about a different variant/trim than selected.

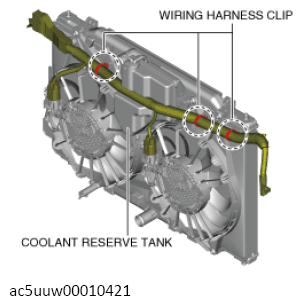

  1. Remove the wiring harness clips shown in the figure.
    G13108088Courtesy of MAZDA MOTORS CORP.

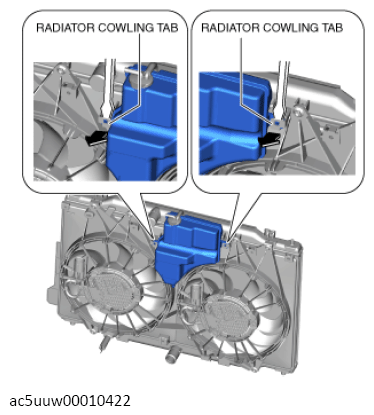

  2. Remove the coolant reserve tank from the radiator cowling tabs shown in the figure by lifting them with a flathead screwdriver.
G13108089Courtesy of MAZDA MOTORS CORP.
