Quick Diagnostic Chart

WARNING: This page is about a different variant/trim than selected.

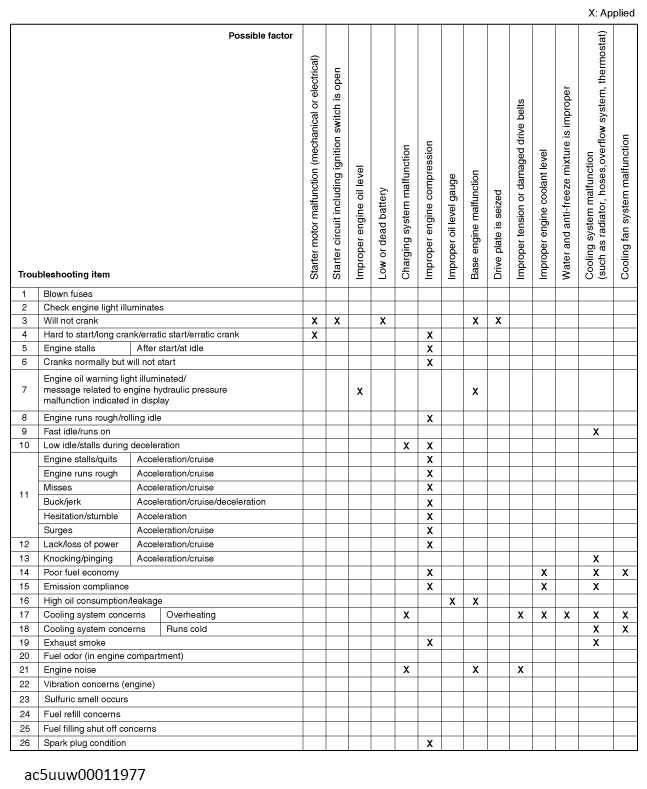

G14464511

Courtesy of MAZDA MOTORS CORP.

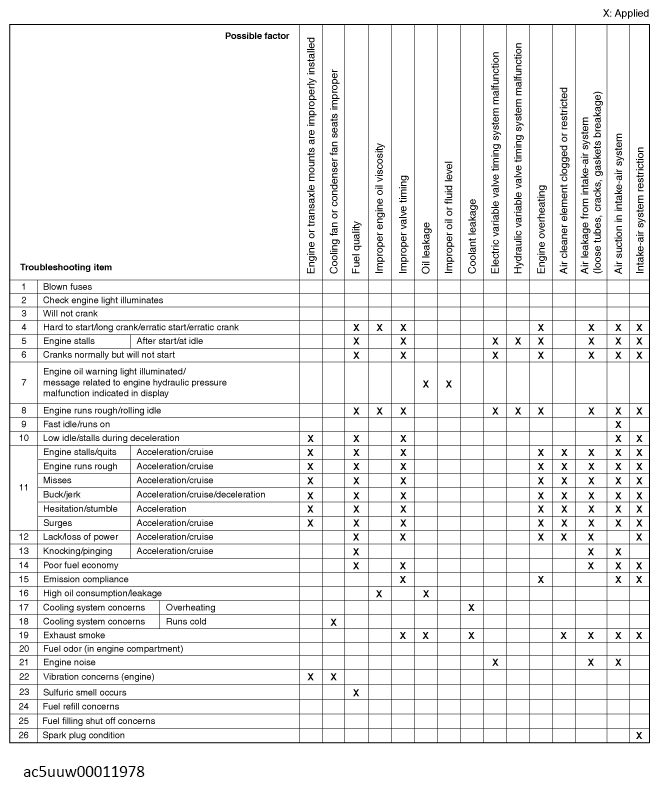

G14464512

Courtesy of MAZDA MOTORS CORP.

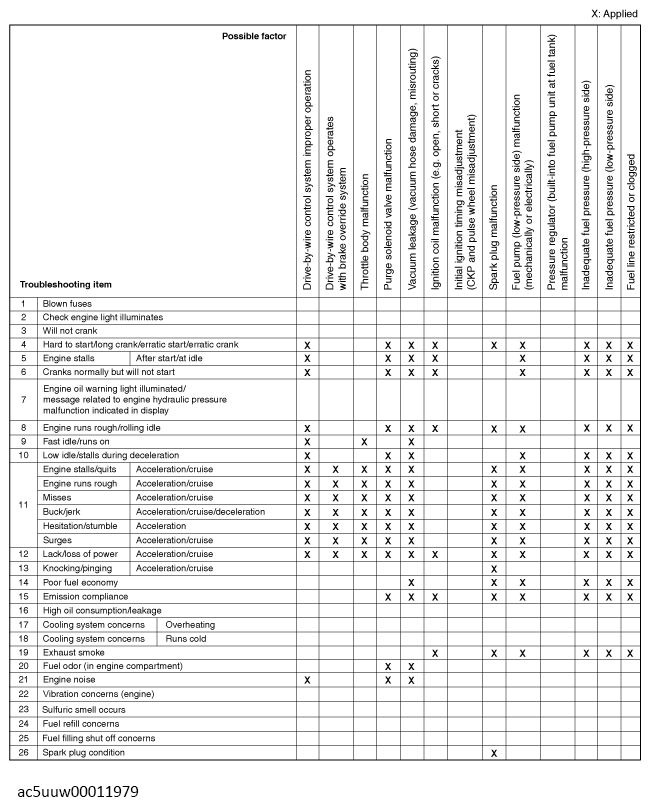

G14464513

Courtesy of MAZDA MOTORS CORP.

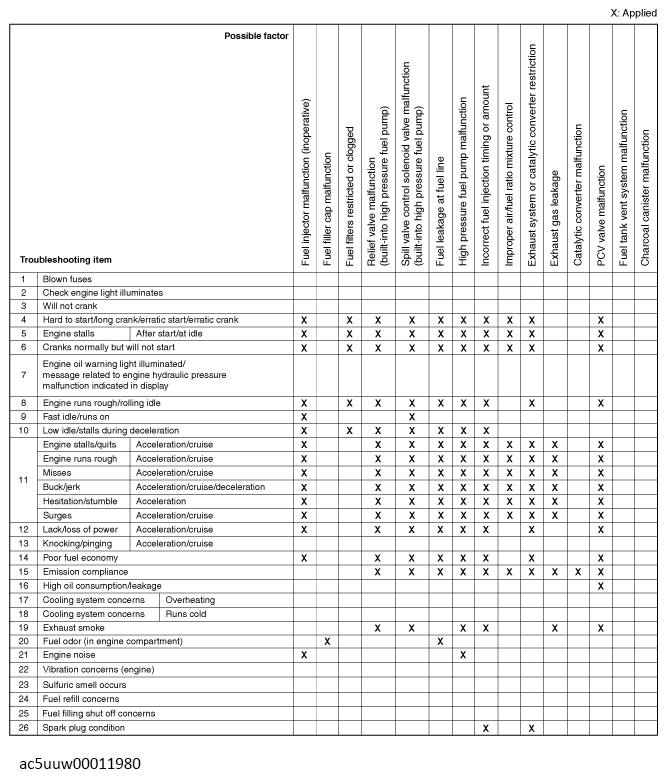

G14464514

Courtesy of MAZDA MOTORS CORP.

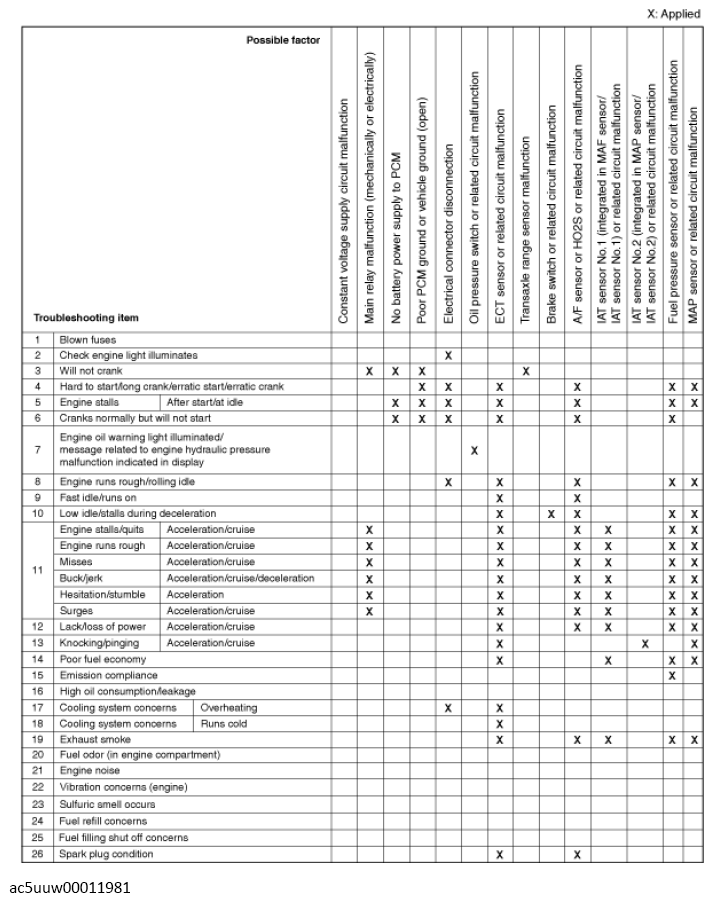

G14464515

Courtesy of MAZDA MOTORS CORP.

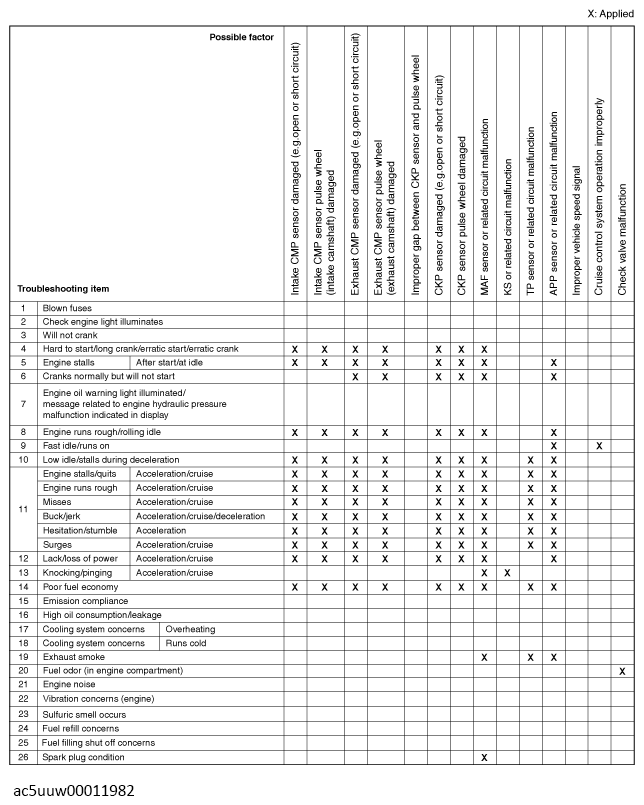

G14464516

Courtesy of MAZDA MOTORS CORP.

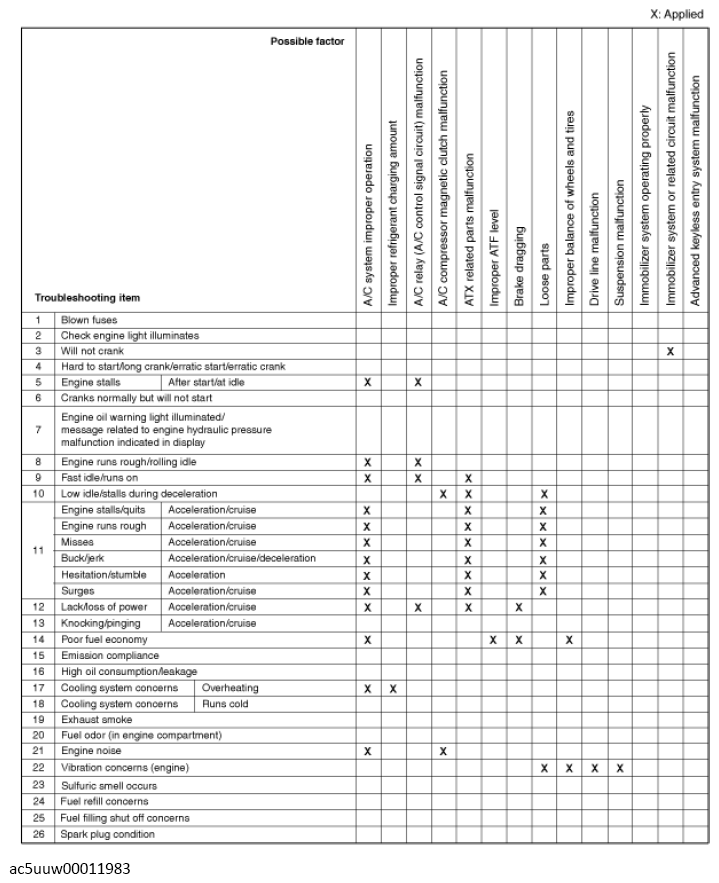

G14464517

Courtesy of MAZDA MOTORS CORP.

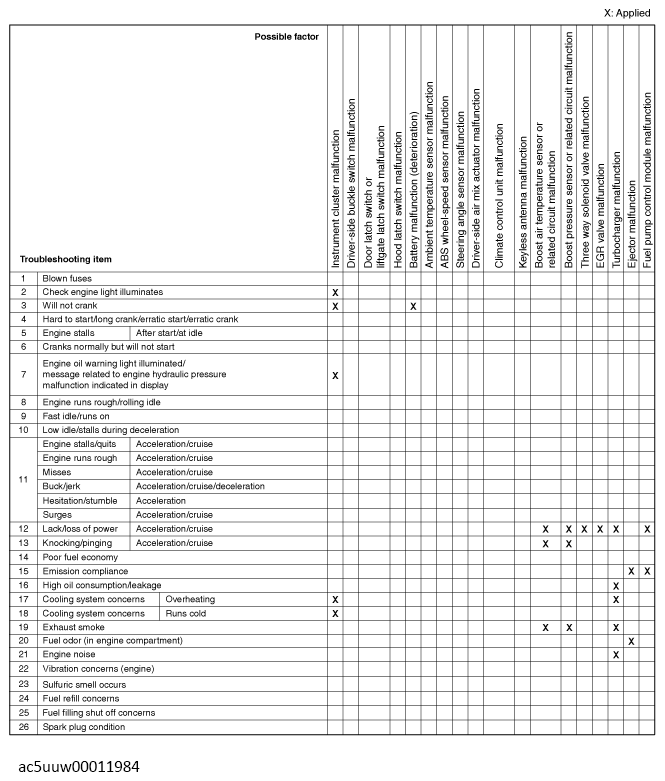

G14464518

Courtesy of MAZDA MOTORS CORP.
