No. 1 Blown Fuses

WARNING: This page is about a different variant/trim than selected.

1	BLOWN FUSES

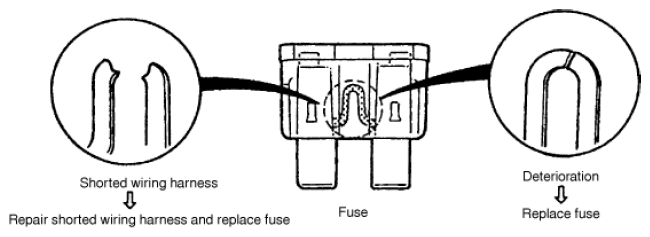

[TROUBLESHOOTING HINTS] Inspect condition of fuse. Courtesy of MAZDA MOTORS CORP.

Damaged fuse

Related wiring harness

MAIN

FUEL PUMP fuse
IG2 fuse
ENG.MAIN fuse
ENG.+B fuse
INJECTOR fuse
EVVT fuse
IG1 relay

FAN

Cooling fan relay No. 1

ADD FAN

Cooling fan relay No. 2

FUEL PUMP

Fuel pump relay

ENGINE.IG1

Fuel pump relay

ENG.+B

PCM

STR

Starter
Generator

IG2

Starter relay
ACC relay

ENG.MAIN

Main relay

INJECTOR

Fuel injector relay

EVVT

Electric variable valve timing relay

ENGINE1

Electric variable valve timing relay
A/F sensor
HO2S
MAF sensor/IAT sensor No. 1
Intake CMP sensor
Three way solenoid valve
Air bypass valve
EGR valve
CV solenoid valve ⁽¹⁾

ENGINE2

Fuel injector relay
Purge solenoid valve
OCV
PCM
Exhaust CMP sensor
Ignition coil/ion sensor No. 1
Ignition coil/ion sensor No. 2
Ignition coil/ion sensor No. 3
Ignition coil/ion sensor No. 4

ENGINE3

Cooling fan relay No. 1
Cooling fan relay No. 2
Engine oil solenoid valve
Engine oil level sensor
Forward sensing camera (FSC)

⁽¹⁾	U.S.A. and CANADA
