EGR Cooler Removal/Installation
>>
Water Hose No. 2 Installation Note
Water Hose No. 2 Installation Note
WARNING:
This page is about a different variant/trim than selected.

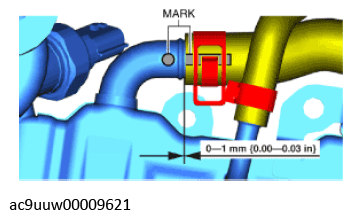

Install the water hose No. 2 as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
