Check valve (ejector side) installation note

WARNING: This page is about a different variant/trim than selected.

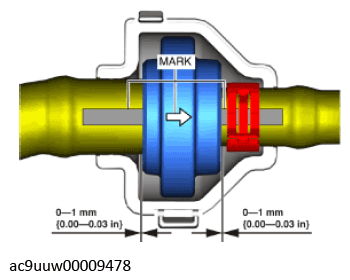

  1. Install the check valve (ejector side) as shown in the figure.
G11436238Courtesy of MAZDA MOTORS CORP.
