Three Way Solenoid Valve Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION ).

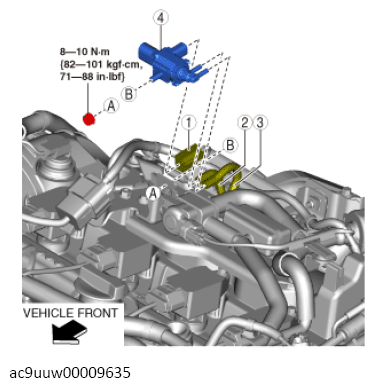

- Remove in the order indicated in the table.PART SPECIFICATION
1 Connector 2 Vacuum hose No. 1
(See Vacuum Hose Installation Note ).3 Vacuum hose No. 2
(See Vacuum Hose Installation Note ).4 Three way solenoid valve - Install in the reverse order of removal.
