Section 11 (Intake Air System (VIN Y))
>>

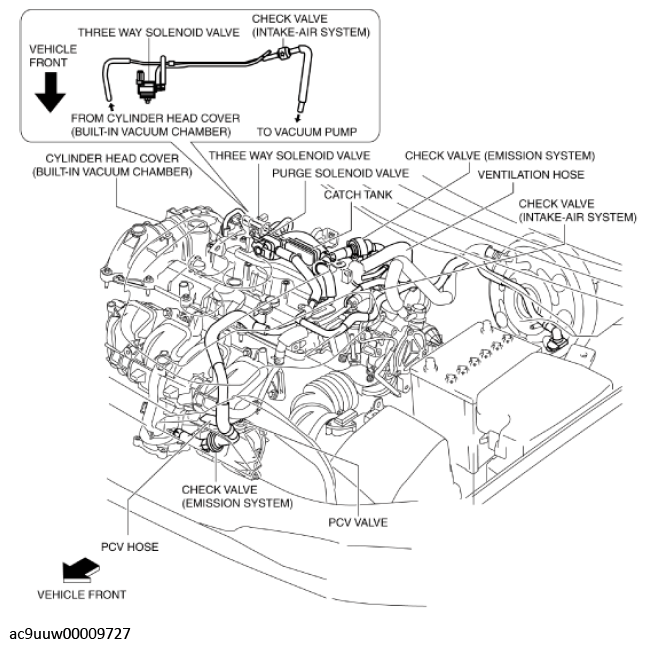

Intake-Air System Vacuum Hose Routing Diagram
Intake-Air System Vacuum Hose Routing Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of MAZDA MOTORS CORP.
