Fresh-air Duct Removal Note

WARNING: This page is about a different variant/trim than selected.

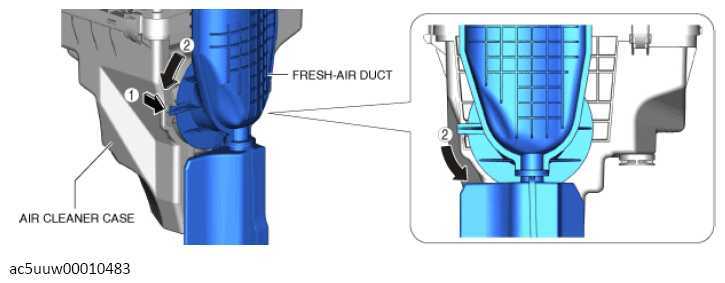

  1. While moving the tabs in the direction shown in the figure, rotate the fresh-air duct.
    G14465359Courtesy of MAZDA MOTORS CORP.
  2. Remove the fresh-air duct.
